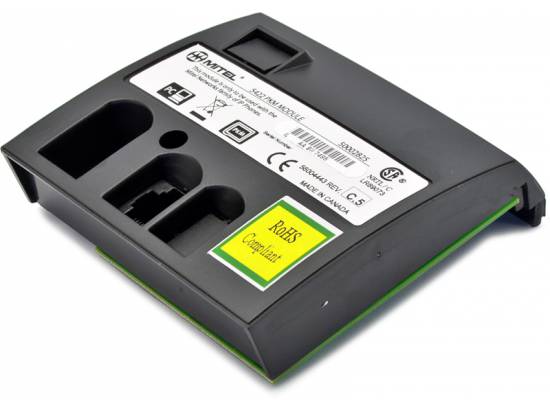

The Mitel 5422 IP PKM Interface Module provides connectivity between select Mitel 5200, 5300, and 8500 series phones and Mitel IP PKM 12/48.

Features

• Required to connect Mitel 5412 or 5448 Programmable Key Module to your Mitel IP or digital telephone
• Connects (1) Mitel 5412 IP PKM to a Mitel 5220/5224/5235/5324/5330/5340 IP phone
• Connects (1) Mitel 5412 IP PKM to a Mitel 8528/ 8568 digital phone
• Connects up to (2) Mitel 5448 IP PKMs to a Mitel 5220/5224/5235/5324/5330/5340 IP phone for a maximum of 96 additional keys (supported by a Mitel Communications Director (MCD), 3300 IP Communications Platform (ICP) or SX-200 ICP)
• Connects up to (2) Mitel 5448 IP PKMs to a Mitel 8528/8568 and 5224/5324 IP Phone for a maximum of 96 additional keys (supported by a 5000 Communications Platform)
• Mitel 5220/8528/8568 - Requires 24VDC power adapter
• MItel 5224/5235/5324/5330/5340 - Can be powered via 802.3af Power over Ethernet or 48VDC power adapter

Included

• PKM Module
• Ethernet Cable

Compatibility

• 5224 and 5235 IP Phones: Powered via the adapter power port or PoE (802.3af)
• 5324 IP Phone: PoE (802.3af) or from the phone's power source
• Mitel 3300 ICP release 9.0 UR1 or later
• Mitel SX-200 ICP release 4.0 UR5 or later

Refurbished

Functionality
Cosmetics

All refurbished items are restored to full functionality, and their grades reflect only cosmetic condition. Lower-grade products may have more visible blemishes but are rigorously tested and cleaned to ensure identical performance and warranty coverage.
