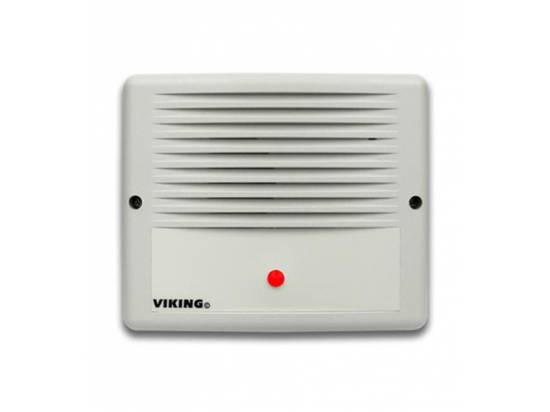

The SR-IP is a SIP compliant PoE powered audio device for providing audible and visual ring indication for SIP VoIP phone systems. When registered with a SIP server, the SR-IP will ring in one of 4 programmable ring patterns and flash a bright red LED upon ring detection. During ring detection the unit’s internal relay contacts will also activate providing a trigger for a Viking SL-2 Strobe Light or LPL-1 Visual Ring Indicator.

Features

• 2 Amp SPDT relay contacts to control a Viking LPL-1 (DOD 640) or SL-2 Strobe Light (DOD 242)
• Bright red LED visual ring indicator
• SIP compliant
• PoE powered
• Automatic Gain Control (AGC) to automatically increase ring volume to compensate for ambient noise
• Surface mounts to a single gang or 4″ x 4″ electrical box or directly to a wall or post
• Extended temperature range: -40°F to 140°F
• Four programmable ring cadences: normal , double, short-short-long, short-long-short
• Programming software included
• Network downloadable firmware
• Remotely programmable
• Remotely adjust ringer volume
• Diagnostics for testing mic, speaker, and relay

Included

• Ringer

Certifications

• SIP

Installation Notes

• Installation requires the assistance of a Network Administrator / IT Technician.
