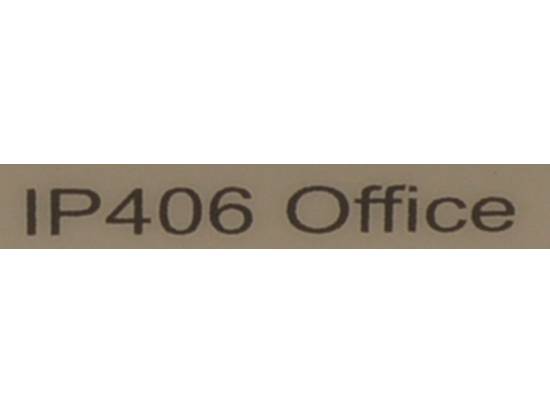

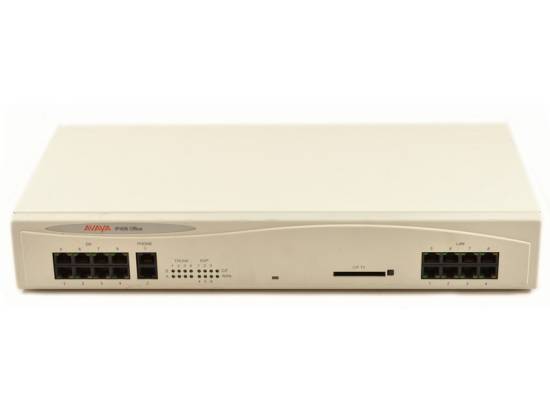

The Avaya IP406 V2 Control Unit (700359946) is a robust and scalable base module for Avaya’s IP Office system—tailored for small to mid-sized businesses. It supports digital, analog, and IP communications, with built-in expansion capabilities for stations, trunks, VoIP, and messaging—all within a single, flexible platform.

Features

• PCS 08 or Higher - Hardware revision PCS 08 or higher is compatible with the latest release of IP Office - R4.0
• 8 LAN Ports - Eight port unmanaged layer 2 ethernet switch. Ports are full-duplex 10/100Mbps, auto-sensing, and auto MDI/MDIX. Used for PC and server connectivity as well as for connecting the optional IP400 WAN3 and IP telephones.
•  8 Digital Station Ports - Compatible with 2400, 4400, 5400, and 6400 series digital telephones. Also compatible with 3810 and TransTalk 9040 wireless.
•  2 Analog Station Ports - Used for connection of analog telephones and devices. Not suitable for out-of-building connections.
•  2 Internal Trunk Module Slots - Compatible with PRI 24 T1, PRI 48 T1, Quad BRI, and Analog Trunk Module (ATM4)
•  1 VCM Expansion Slot - Compatible with VCM 5/10/20/30 and VCM 4/8/16/24. Maximum voice compression channels capacity of 30 channels.
•  6 Expansion Ports - Compatible with Digital Station 16/30, Phone 8/16/30,So8, WAN3, and Analog Trunk 16
•  1 Compact Flash Slot - For use with optional embedded voice mail card
•  Additional Ports - Music on-hold, DTE port, external relay switch for door entry controls, integral WAN port
• Maximum Extensions - 190 of various types in combination. Analog only: 182. DS Only: 188. IP Only: 190.
•  Data Channels - 40 of which 20 are usable for Voicemail Pro/TAPI WAV connection sessions

Included

• Avaya IP406 V2 Control Unit (700359946)

New Product

These products are brand new and have never been used. They arrive in the original manufacturer packaging in pristine, factory-fresh condition.
