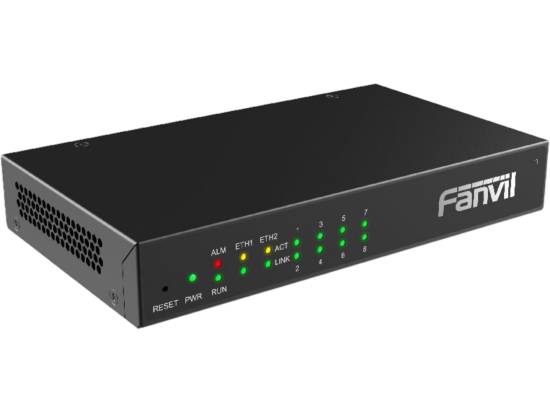

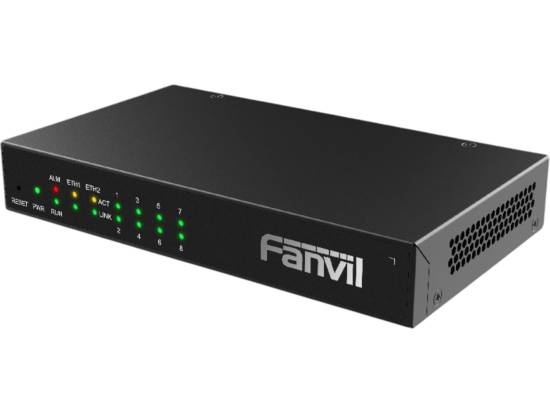

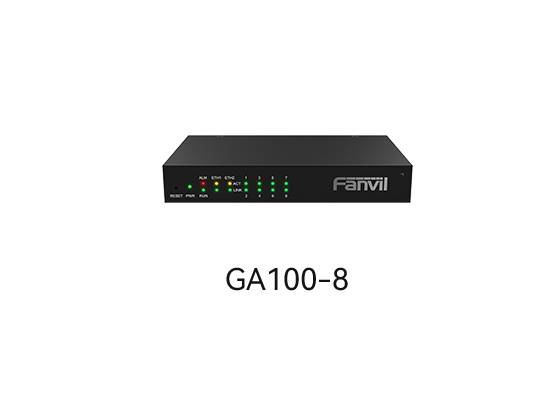

The Fanvil GA100-8 is an 8-port FXS VoIP gateway designed to bridge traditional analog phone lines with modern IP-based communication systems. Built for businesses looking to extend the life of existing analog equipment while integrating with a VoIP infrastructure, this gateway offers reliable voice transmission, flexible provisioning, and robust security features.

Key Features & Benefits

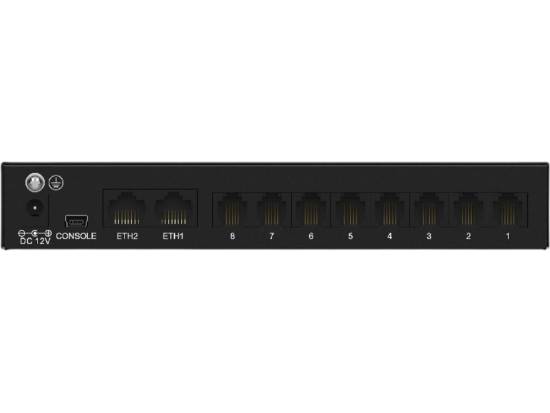

• 8 FXS ports (RJ11 x8) for connecting analog phones, fax machines, and other legacy devices to a VoIP network
• Dual 10/100 Mbps Ethernet ports for flexible network connectivity
• Supports multiple voice compression codecs: G.711a/u, G.723, G.729A/B, iLBC, and AMR for clear, efficient call quality
• Fax over IP support on FXS ports, allowing continued use of fax machines over an IP network
• Advanced telephony features including three-party conferencing, group ringing, round-robin ringing, call forwarding, call waiting, do not disturb, and auto-dialing
• Caller ID support via FSK and DTMF for accurate call identification
• Automatic deployment and TR-069 support for simplified, centralized provisioning and configuration management
• Security protocols including TLS, SRTP, and ACL to help protect network traffic and device access
• Compact design at 7.32" x 4.25" x 1.18", suitable for desktop or rack placement

The GA100-8 is well-suited for small to mid-sized businesses, call centers, or multi-line offices that need to connect analog phone systems to a VoIP network without replacing existing hardware. Its automated provisioning tools and centralized management capabilities make it easy for IT teams to deploy and maintain across multiple locations, while built-in security protocols help safeguard voice traffic. With support for common telephony features like call forwarding, conferencing, and group ringing, it helps maintain familiar phone functionality during a transition to IP-based communication.

Technical Specifications

• Manufacturer: Fanvil
• Model: GA100-8
• Network Interface: 2 Ethernet ports (10/100 Mbps)
• Telephone Interfaces: 8 FXS ports (RJ11 x8)
• LED Indicators: PWR, RUN, ALM, FXS
• Voice Compression: G.711a/u, G.723, G.729A/B, iLBC, AMR
• Fax over IP: Supported on FXS ports
• Caller ID: FSK and DTMF supported
• Provisioning: Automatic deployment, TR-069, web management, centralized management
• Security: TLS, SRTP, ACL, administrator authentication
• Dimensions: 7.32" x 4.25" x 1.18"

Included

• 1x Fanvil GA100-8 Gateway Unit
• 1x Power Adapter
• 1x Ethernet Cable
• 1x Ground Wire
• 4x Rubber Foot Pads
• 1x Quick Installation Guide

Why buy from PC Liquidations

Equipping your business with reliable telephony hardware shouldn't be complicated or risky. Every unit goes through a rigorous 25+ point certification process to confirm it meets performance and quality standards before it reaches your door. Combined with fast fulfillment, you can count on getting the equipment you need without unnecessary delays.

Whether you're upgrading a single office or outfitting multiple locations, this VoIP gateway offers the connectivity and features businesses rely on daily. Add it to your cart today and take the next step in modernizing your communication infrastructure.
