Fanvil A11 IP Audio Intercom
-
20,000+★★★★★5 Star Reviews
Free Shipping on Orders of $500+ *
Satisfaction Guaranteed

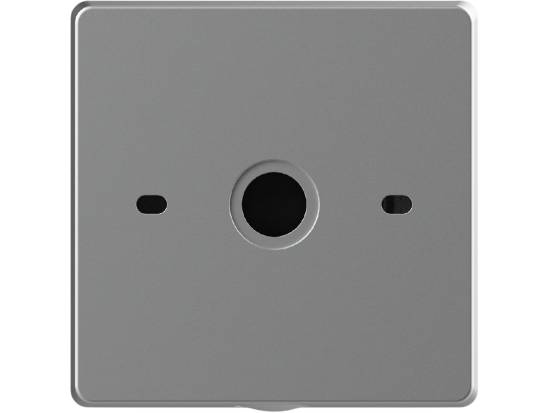

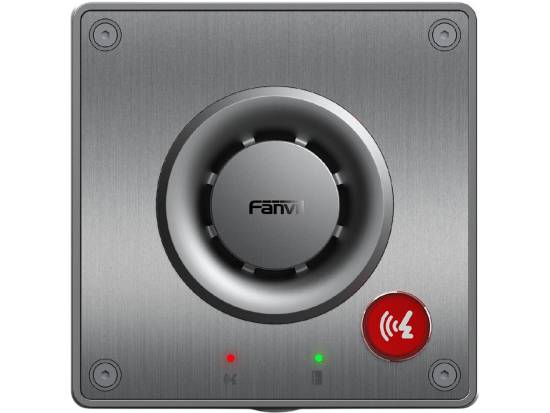

Fanvil A11 IP Audio Intercom
The Fanvil A11 is a rugged, SIP-based IP audio intercom built for demanding outdoor and indoor environments. Combining weatherproof durability with clear two-way audio, it's an ideal solution for businesses and property owners who need a reliable communication and access point at entrances, gates, parking structures, and more.
Key Features & Benefits
- IP66-rated water and dust protection plus IK10 vandal resistance for reliable outdoor performance
- Stainless steel panel and aluminum alloy enclosure for long-term durability
- 5W built-in speaker with dual omnidirectional microphones and full-duplex speakerphone for clear, natural conversations
- PoE+ support (IEEE 802.3at) for simplified single-cable installation, with a 12–24V DC dual power option for added flexibility
- Built-in relay output and 2 dry contact inputs for door/gate access control integration
- TF/SD card slot for scheduled MP3 broadcasting and call recording
- 2 SIP lines with multicast broadcasting, IP camera linkage, and Action URL/Active URI support
- Operates reliably in extreme temperatures, from -40°C to 70°C
Designed for businesses that need dependable entry communication, the A11 integrates easily into existing VoIP and access control systems. Its turbo sound chamber design and dual-microphone pickup (up to 5 meters) make it well suited for busy entryways, loading docks, or multi-tenant buildings where clear communication is essential. The programmable DSS key and audio line-out port add flexibility for pairing with external speakers, amplifiers, or automated paging systems, while IP camera linkage allows for a more complete security and monitoring setup.
Technical Specifications
- Network: 1 RJ45 10/100 Mbps Ethernet port; PoE+ (802.3at, Class 4)
- Access Control: 1 short-circuit relay output (30V DC/2A, 125V AC/0.5A; 12V/500mA DC active pulse)
- Audio: 5W speaker (90 dB SPL @ 1m/5W, 230 Hz–15 kHz, 4 Ohm); dual omnidirectional mics
- Alarm I/O: 2 dry contact inputs; 1 relay output
- Expansion: TF/SD card slot; audio line-out (1000 Ohm impedance)
- Durability: IP66, IK10, stainless steel/aluminum alloy construction
- Dimensions: 3.97" x 3.94" x 1.77"
- Optional Accessories: EX611 Flush-mounted Bracket, WM613 Universal Bracket, RC01 Rain Cover, RC02 Rain Cover
Included
- 1x Audio intercom unit
- 1x Quick Installation Guide
- 1x Wall-mounting bracket
- 1x Mounting template
- 1x Screw kit
Why buy from PC Liquidations
Every unit we offer is backed by a rigorous 25+ point certification process, ensuring the hardware you receive meets dependable performance standards before it ever reaches your door. Our commitment to quality is reflected in over 20,000 5-star reviews from customers who count on us for their business technology needs.
Whether you're outfitting a single office entrance or a multi-site deployment, the Fanvil A11 offers the durability and communication features businesses need at a price that makes sense. Add it to your cart today and strengthen your entryway communication and access control setup.
New Product
These products are brand new and have never been used. They arrive in the original manufacturer packaging in pristine, factory-fresh condition.
A11 IP Audio Intercom Technical Specs
| Manufacturer | Fanvil |
|---|---|
| Model | A11 |
| Camera | - |
| Access Control | 1 short-circuit relay output port (built-in relay max 30V DC / 2A, 125V AC / 0.5A; active pulse output 12V / 500mA DC) |
| Network Interface & PoE | 1 RJ45 10/100 Mbps Ethernet port; PoE+ support (IEEE 802.3at, Class 4) |
| Wi-Fi | - |
| Bluetooth | - |
| Button | 1 programmable DSS key / button |
| Audio Features | 5W built-in speaker (max SPL 90 dB @ 1m/5W, 230 Hz–15 kHz, 4 Ohm); dual omnidirectional microphones with up to 5-meter pickup distance; full-duplex speakerphone. |
| Alarm Input/Output | 2 dry contact inputs; 1 short-circuit relay output port |
| Expansion Interface | 1 TF / SD card slot (supports recording and scheduled broadcasting); 1 audio Line-out port (1000 Ohm impedance for external active speakers or amplifiers) |
| Durability | IP66 water and dust protection; IK10 vandal resistance rating; stainless steel panel and aluminum alloy enclosure; operating temperature -40°C to 70°C |
| Special Features | 2 SIP lines; turbo sound chamber design; scheduled MP3 broadcasting via SD card; IP camera linkage; multicast broadcasting; Action URL / Active URI support; dual power supply (PoE+ or 12–24V DC / 2A) |
| Dimensions | 3.97" x 3.94" x 1.77" |
| Optional Accessories | EX611 Flush-mounted Bracket WM613 Universal Bracket RC01 Rain Cover RC02 Rain Cover |
| Included | 1x Audio intercom unit 1x Quick Installation Guide 1x Wall-mounting bracket 1x Mounting template 1x Screw kit |
