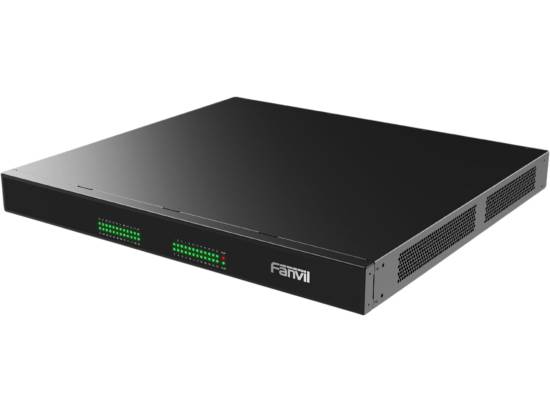

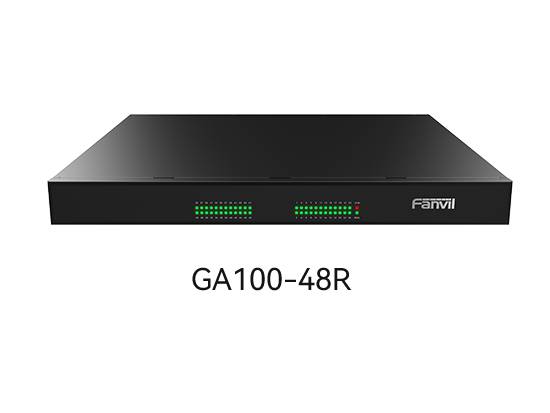

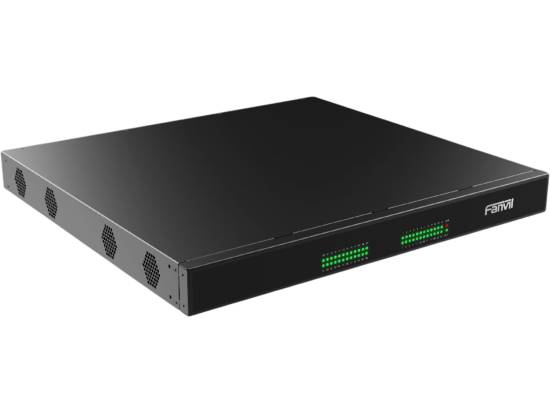

Fanvil GA100-48R VoIP Gateway
-
20,000+★★★★★5 Star Reviews
Free Shipping on Orders of $500+ *
Satisfaction Guaranteed
The Fanvil GA100-48R VoIP Gateway is a high-capacity analog gateway built for businesses that need to bridge traditional telephone lines with modern IP telephony. Supporting up to 48 FXS channels in a single rack-mountable unit, it's designed to simplify large-scale voice deployments while keeping existing analog equipment in service.
Key Features & Benefits
- 48 FXS channels via 2 x RJ21 ports for high-density analog-to-IP conversion
- 2 x Gigabit Ethernet ports plus a Gigabit SFP optical port for flexible, high-speed network connectivity
- Broad voice codec support (G.711a/u, G.723, G.729A/B, iLBC, AMR) for clear, reliable calls
- Fax over IP support for uninterrupted document transmission
- Advanced telephony features including three-party conferencing, group ringing, call forwarding, call waiting, and do-not-disturb
- Caller ID support with both FSK and DTMF delivery methods
- Multiple provisioning options: TR069, TFTP, Web Management, and centralized third-party management
- Robust security suite with firewall, ACL, SRTP, TLS, HTTPS, VPN client, and administrator authentication
- Rack-mountable design with included mounting hardware for clean, organized installations
Built for medium to large organizations, call centers, hospitality environments, and any business looking to extend the life of analog phone infrastructure, the GA100-48R makes it possible to connect dozens of analog lines to a VoIP network without replacing existing phone hardware. Its combination of Gigabit networking, comprehensive codec support, and enterprise-grade security features makes it a practical choice for IT teams managing voice infrastructure at scale. LED indicators for power, WAN, LAN, and individual FXS channel status give administrators an at-a-glance view of system health, while a Mini USB console port supports direct configuration access when needed.
Technical Specifications
- Manufacturer: Fanvil
- Model: GA100-48R

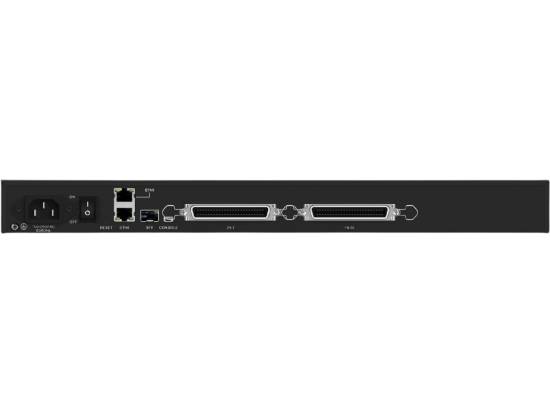

- Network Interfaces: 2 x Gigabit Ethernet (10/100/1000 Mbps), 1 x Gigabit SFP optical port, 1 x Mini USB console port
- Telephone Interfaces: 48 FXS channels (2 x RJ21 ports)
- LED Indicators: PWR, WAN, LAN, FXS (RUN, ALM, FXS 1-48 status)
- Voice Compression: G.711a/u, G.723, G.729A/B, iLBC, AMR
- Security: Firewall, ACL, SRTP, TLS, HTTPS, Administrator authentication, VPN client
- Dimensions: 17.32" x 16.24" x 1.73"
- Mounting: Rack-mountable
Included
- 1 x Fanvil GA100-48R Gateway Main Unit
- 1 x AC Power Cord
- 1 x Standard Ethernet Cable (RJ45)
- 2 x Rack-mount Ears / Brackets
- 1 x Set of Mounting Screws
- 1 x Quick Installation Guide
Why buy from PC Liquidations
Every unit we offer goes through a rigorous 25+ point certification process to confirm it meets our standards for performance and reliability before it ever reaches your business. We stand behind what we sell, and all products come with a warranty, giving you added confidence in your investment.
Equip your business with the networking and telephony infrastructure it needs without overspending. Add the Fanvil GA100-48R VoIP Gateway to your cart today and take the next step toward a more streamlined, cost-effective voice communications setup.
New Product
These products are brand new and have never been used. They arrive in the original manufacturer packaging in pristine, factory-fresh condition.
GA100-48R VoIP Gateway Technical Specs
| Manufacturer | Fanvil |
|---|---|
| Model | GA100-48R |
| Network Interface | 2 x Gigabit Ethernet ports (10/100/1000 Mbps), 1 x Gigabit SFP optical port, 1 x Mini USB console port |
| # of Telephone Interfaces | 48 FXS channels (2 x RJ21 ports) |
| LCD display | - |
| LED indicators | PWR, WAN, LAN, FXS (includes RUN, ALM, and FXS 1-48 status LEDs) |
| Voice Compression | G.711a/u, G.723, G.729A/B, iLBC, AMR |
| Fax over IP Support | Supported (Fax / FXS feature) |
| Telephony Features | Three-party conferencing, group ringing, round-robin ringing, pick-up, call forwarding, call waiting, do not disturb, hook flash detection, auto-dialing, polarity reversal |
| Caller ID | Supported (Calling Number Delivery: FSK and DTMF) |
| Provisioning | Automated Gateway Configuration Deployment, Web Management, TR069, TFTP, Centralized third-party management |
| Security | Firewall, ACL (extension registration and web access), SRTP, TLS, HTTPS, Administrator authentication, VPN client |
| Dimensions | 17.32' x 16.24" x 1.73" |
| Mounting | rack-mountable |
| Included | 1x Fanvil GA100-48R Gateway Main Unit 1x AC Power Cord 1x Standard Ethernet Cable (RJ45) 2x Rack-mount Ears / Brackets 1x Set of Mounting Screws 1x Quick Installation Guide |
