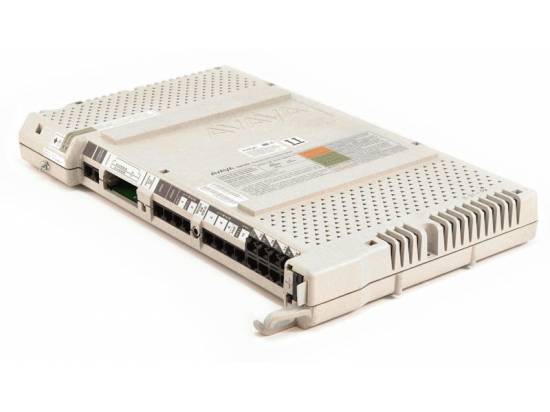

Partner ACS 509 Processor R8.0 (700469687)

Features

• Provides 5 line ports and 9 station ports
• Loudspeaker Paging Line to allow you to connect a loudspeaker paging system to any line jack on any Partner Module
• Enhanced backup/restore capabilities to allow you to back up the Partner system programming to either the internal memory of the Partner ACS R8.0 processor or a PC Card
• Provides an RJ-45 serial port (Admin port) to allow you to connect to the Partner system either directly from the COM port of a PC or via an extenal modem that is connected to the Admin port and administer the system via Administration Software
• Dual line Caller ID support puts the caller's name and number on your telephone display
• 2 PC Card slots for backup/restore of system programming, voice messaging PC cards, ASA/DXD, and software upgrades
• Direct connection of analog answering machines, fax machines, telephones, and modems to station ports
• Support of 1600 DSL module
• Compatible with Computer Telephony Integration via PassageWay TAPI (Telephony Application Program Interface) based solutions
• 100 programmable system speed dial numbers
• Internal call forwarding and call follow me
• 2 contact-closure connections to control door locks, and security systems
• Music port for digital music on hold system
• SMDR (Station Message Detail Recording) port
• Built in Paging Port
• 2 Power failure transfer ports

New Features on the ACS 509 R 8.0:

• Caller ID to analog tip/ring devices
• Absent Text Message allows you the option to post an "away message" on the display of the Partner 34D or 18D
• Network Time Synchronization allows you to synchronize the system time with your network provider's clock or by the internal system clock
• Hot Dial allows you to set your system phone to go off-hook and start dialing as soon as the dial pad is activated
• Message Alert Notification allows you to program a button to notify you of a message waiting at another extension
• Personalized Station Ringing allows you to assign a personalized ring pattern to an extension for intercom calls
• Override Line Ringing allows you to override the Unique Line Ringing settings for an extension and set all incoming calls to ring with a Personalized Station Ringing pattern
• Support for the Avaya 3920 Wireless telephone
• Support for Partner ACS R8.0 PC Administration software

Compatibility

• Compatible with Partner Voice Messaging PC Cards, Partner Mail VS, and Partner Messaging Release 1.0 voice mail systems

Included

• ACS 509 R8 processor
• battery door

Note

ACS Power Cord, and AAA batteries not included

Refurbished

Functionality
Cosmetics

All refurbished items are restored to full functionality, and their grades reflect only cosmetic condition. Lower-grade products may have more visible blemishes but are rigorously tested and cleaned to ensure identical performance and warranty coverage.
