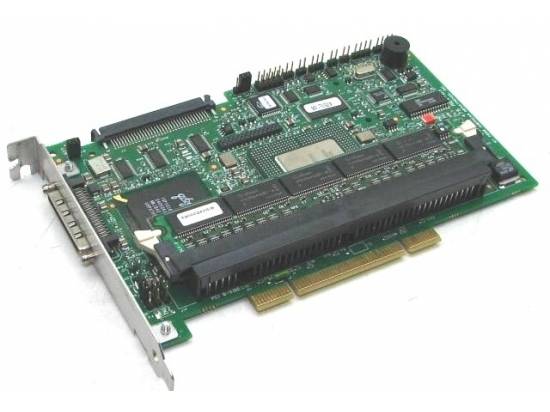

Qlogic Series 475 Rev-B3 isp10160a

Features:

Supports a 33-MHz, 64-bit PCI host bus interface with a 264 MB/sec maximum PCI transfer rate. Compliance with PCI Local Bus Specification rev 2.1 Compliance with ANSI draft T10/1302D SCSI-3 Parallel Interface (SPI-3) Supports Ultra3 (Fast-80) SCSI SCSI feature set: dual transition, CRC, domain validation Compliance with PCI Bus Power Management Interface Specification revision 1.0 (PC98) Supports one wide Ultra3 (Fast-80) SCSI channel Up to 160 Mbytes/sec parallel SCSI transfer rate Supports single-ended, low voltage differential (LVD) SCSI SCSI initiator and target modes of operation On-board RISC processor to execute operations at the I/O control-block level from the host memory Supports PCI dual-address cycle (64-bit addressing)
No host intervention required to execute SCSI operations from start to finish Simultaneous, multiple logical threads JTAG boundary scan support
Product Description
The ISP10160A supports single channel, Ultra3 SCSI functionality and is pin compatible with QLogic's ISP12160A Ultra3 SCSI processor, as well as QLogic's ISP1280 dual channel SCSI processor. The ISP10160A is a single-chip, highly integrated bus master, single-channel SCSI I/O processor for SCSI initiator and target applications. This device interfaces the PCI bus to an Ultra3 SCSI bus and contains an on-board RISC processor. The product is a fully autonomous device, capable of managing multiple I/O operations and associated data transfers from start to finish without host intervention. The ISP10160A provides power management feature
