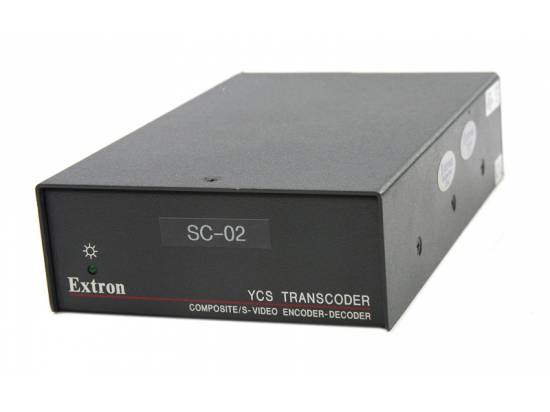

Extron YCS Transcoder
Only $17.00
Extron YCS Transcoder Extron YCS Transcoder
Previous Image
Extron YCS Transcoder
Next Image

Extron YCS Transcoder

SKU 63614 60-323-01 Refurbished (Grading Guide)
$17.00
Regular Price
$84.99
You Save
80%
Status
In Stock
Select Options
  • 15,000+
    ★★★★★
    5 Star Reviews
  • Free Shipping on Orders of $500+ in Continental US
    Free Shipping on Orders of $500+ *
  • Satisfaction Guaranteed
    Satisfaction Guaranteed
Have one to sell?
Item Information
Extron YCS Transcoder


Features:

  • Inputs: Composite video on a BNC with buffered loop-through, S-video on a 4-pin mini DIN with buffered loop-through
  • Outputs: Composite video on a BNC, S-video on a 4-pin mini DIN
  • Encodes S-video to composite video
  • Quad standard compatible input
  • Decodes composite video to S-video
  • NTSC 3.58 or PAL selectable output
  • Three-line NTSC/five-line PAL adaptive comb filter
  • Rack-mountable 1U, quarter rack width metal enclosure

Condition

  • These items have been refurbished
  • Refurbished items have been cleaned, tested, and confirmed to be fully functional
  • These items may have minor blemishes on their housings which cannot be removed during the refurbishing process
Specifications
Video GainUnity
Crosstalk-60 dB @ 3.58 MHz
Video input Number/signal type1 NTSC/PAL S-video
1 NTSC/PAL composite video
Video input Connectors1 female 4-pin mini DIN
1 BNC female
Video input Nominal level 1 Vp-p for Y of S-video, and for composite video
0.3 Vp-p for C of S-video
Video input Minimum/maximum levels S-video Y: 0.5 V to 2.0 Vp-p
C: 0.2 V to 0.6 Vp-p
Video input Minimum/maximum levels Composite 0.5 V to 2.0 Vp-p
Video input Impedance75 ohms
Video input Return loss <-40 dB @ 0 to 10 MHz
Video output Number/signal type2 S-video: 1 decoded from composite input, 1 buffered from S-video input
2 composite: 1 encoded from S-video input, 1 buffered from composite video input
Video output Connectors(2) 4-pin mini-DIN
2 BNC female
Video output Nominal level 1 Vp-p for Y of S-video, and for composite video
0.3 Vp-p for C of S-video
Video output Minimum/maximum levels S-videoY: 0.5 V to 2.0 Vp-p
C: 0.2 V to 0.6 Vp-p
Video output Minimum/maximum levels Composite0.5 V to 2.0 Vp-p
Video output Impedance75 ohms
