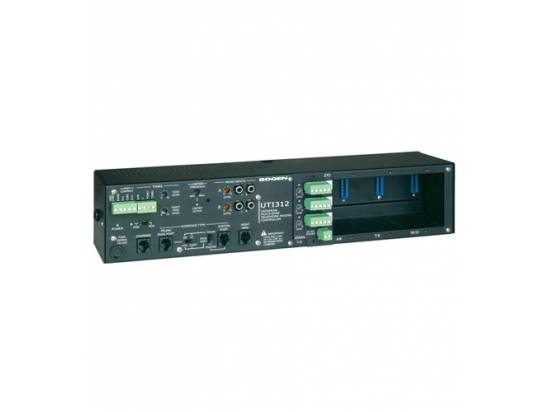

Bogen Multi Zone Page Controller

- Bogen multi-zone paging controller
- 3 to 12 Zone
- Provides multi-zone paging for one-way applications such as self-amplified speaker systems, with each output capable of providing audio for up to 150 self-amplified speakers
- Compatible with all standard analog port types
- Comes with a pre-installed ZX3 module for three zones of paging and is expandable up to 12 zones
- Offers up to 24 programmable paging zone groups as well as all-call, auto select, override, night ring, two tone triggers, and code calling zone groups
- Offers flexible dialing
- Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
- Simple 2-switchinterface setup
- Programmable activation of AUX contacts
- C-form contact per zone
- 24V DC,1A internal power supply
- Provides audio drivefor up to 150 one-way self-amplified speakers perzone
- Adjustable output limiter with thresholdcontrol and active indicator
- Two background music busses, selectable per zone
- Two high-impedance transformer isolated background music inputs
- Stereo combining inputs for background musicbusses
- All-Call paging zone group
- Auto Select paging zone group
- Override paging (using loop start trunk or page port contact closure activation) with zone group
- Night Ringer (90V and contact closure activation) with zone group
- Two Tone Triggers (tone and duration selectable, closure activated) with individual zone groups
- Select tone burst, chime, double chime, or slow whoop
- Code Calling with zone group
- 2 to 5 Digit dialing with flexible dialing plan for zone and zone group numbers
- Non-volatile memory for setup data (no backup battery required)
- Pre-Announce Tone
- Confirmation Tone
- Setup Tone to assist in volume setting
- Pluggable terminal strips
- Microcontroller-based operation
- DTMF programming
- DTMF Block to help suppress DTMF tones over paging system
- Programmable timers control page duration (station and trunk)
- Wall
- or Rack-mountable
- 2 Year manufacturer's warranty
- (+20) Bogen power units
- Accessory modules BG-ZX3 sold separatelyBGUTI312

UPC: 00765368222029
