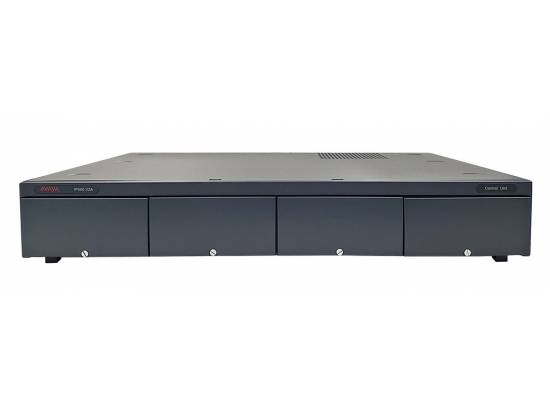

Avaya IP500 V2A Control Unit

The Avaya IP500 V2A Control Unit is responsible for storing the primary settings and handling the routing and switching of phone calls and data traffic. It consists of four slots that can accommodate optional base cards to facilitate trunk and phone extension ports, along with eight expansion port slots for external expansion modules.

Features

• 4 Base Card Slots - Can accommodate IP500 Digital Station 8A (does not support the original Digital Station 8), Analog Phone 2, Analog Phone 8, Combination ATM, Combination ATM V2, ETR 6, TCM 8, VCM 32, VCM 32 V2, VCM 64, VCM 64 V2, Unified Communications Module V2, and 4-Port Expansion base cards.
• Trunk Cards - Supports IP500 ATM 4, ATM 4 V2, PRI 1, and PRI 2 trunk interface cards installed on IP500 Base Cards.
• 2 SD Card Slots - Supports system SD card (required) and optional SD card
• 2 SD Card Slots - Supports system SD card (required) and optional SD card
• Voicemail Channels - Maximum 40 usable for Voicemail Pro/TAPI WAV connection sessions
• 8 Integrated Expansion Ports - Compatible with Digital Station 16/30, Phone 8/16/30, and Analog Trunk 16 external expansion modules.
• Support for up to 12 External Expansion Modules - In addition to the 8 integrated expansion ports, you can add up to 4 additional expansion ports using the 4-Port Expansion base card.
• 2 LAN Ports - Full duplex 10/100 Mbps; managed layer 3 Ethernet switch Additional Ports - Music on-hold, DTE port, external relay switch for door entry controls, integral WAN port Includes Power Cord

Compatibility

• The Avaya IP500 V2A Control Unit is compatible with the above base cards and external expansion modules
• Compatible with 1400, 2400, 5400, 6400, and 9500 series digital phones (configuration and SW level dependent)
• Compatible with 1600, 4600, 5600, and 9600 series IP phones (configuration and SW level dependent)
• IP Office 11.1 and later supports IP500 V2A control unit

Included

• Avaya IP500 V2A Control Unit
• US Power Cord
