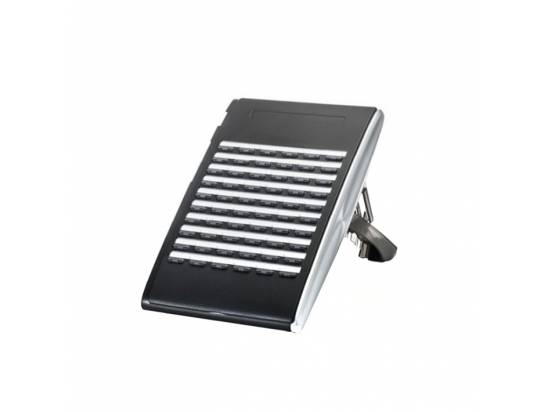

DSS stands for Direct Station Selection. These consoles provide one-touch access to extensions, lines and system features.

When used with an IP endpoint:

• Attaches and connects directly to the IP endpoint via a NEC serial cable 680022 (not included)
• Requires an AC adapter (AC-L 690631 or AC-Z 660035) - not included

When used with a digital endpoint:

• Attaches to the endpoint or the endpoints optional 8-Button Key Assembly, but connects to a separate digital station port.
• Does NOT require an AC Adapter.

Features

• 60 programmable Direct Station Selection (DSS) keys
• Supported on ITL/ITZ or DTL/DTZ modular terminals
• Green and Red LEDs The DSS Console gives a keyset user a Busy Lamp Field (BLF) and one-button access to extensions, trunks and system features.
• The 60-Button DSS Console provides an additional page for additional programmable keys. This is provided by a page switching key that allows "shifting" between the first and second set of keys. If this key is used the amount of keys  per page is reduced to 59 as on key is used for the addition of this key
• 60-Button DSS Console requires a separate digital station port when pairing with a digital keyset.
• For IP terminals, the first console is connected to the side option slot using a special cable.
• Only 1 console can be physically attached to an IP terminal, the remaining 3 must be hard wired from a TDM port.
• When fitted to an IP terminal the DSS console requires it's own power supply. PoE is not supported for the DSS console.
• Up to 32 different extensions with DSS Consoles can be set up
• A single extension can have up to four 60-button DSS Consoles (32is the maximum allowed per system).
• Each DSS console fitted to a TDM port will require a TDM port license

Included

• DSS Console
• Line Cord
• Connection Cable
• Connection Plate
• Stand
• New DESI Paper

Compatibility

• DT410 (Digital 2/6/12-Button)
• DT430 (Digital 12/24/32-Button & Desi-less)
• DT830 (IP 12/24/32-Button & DESI-less

Grade A Refurbished

Functionality
Cosmetics

All refurbished items are restored to full functionality, and their grades reflect only cosmetic condition. Lower-grade products may have more visible blemishes but are rigorously tested and cleaned to ensure identical performance and warranty coverage.
