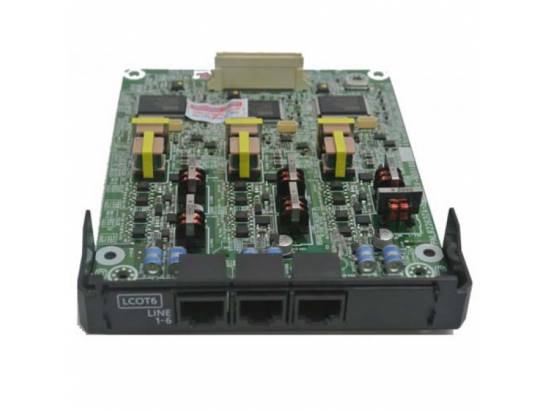

The Panasonic KX-NS5180 is a LCOT6 card for connecting external analog CO lines. The card has been designed to work with network servers KX-NS500 & KX-NS520 & NS700. The device allows you to connect 6 additional external analog lines and can add up to 48 lines maximum. It incorporates caller ID feature on all ports with a standard FSK and DTMF. The device is also capable of detecting reverse polarities and damaged lines as a built-in feature. There are two emergency ports available for emergency which can operate without power. The card comes equipped with 3 RJ45 slots.

Features

• Analog Lines Extension Card
• Adds 6 Analog External Lines (Max 48 Lines)
• Caller ID w/ FSK & DTMF
• Built-in Reverse Polarity Detection
• Detects Damaged Lines
• 2 Emergency Ports
• 3 RJ45 Sockets
• Includes LCOT6 Card & Mounting Hardware

Included

• Panasonic KX-NS5180 6 Port Analog Trunk Card (LCOT6)

Compatibility

• Panasonic KX-NS500, KX-NS520, KX-NS700

Refurbished

Functionality
Cosmetics

All refurbished items are restored to full functionality, and their grades reflect only cosmetic condition. Lower-grade products may have more visible blemishes but are rigorously tested and cleaned to ensure identical performance and warranty coverage.
