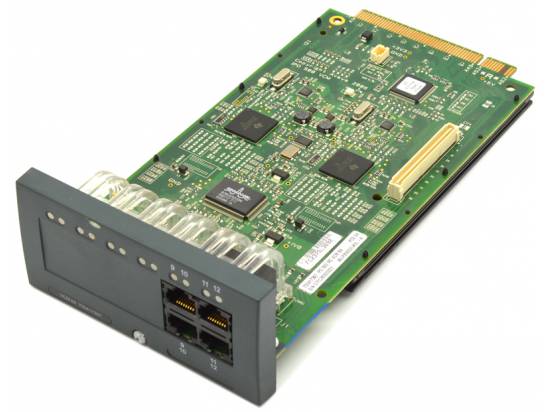

The Avaya IP500 VCM 64 4-Port Base Card enhances communication capabilities by supporting up to 64 VoIP channels. Designed for the Avaya IP Office system, it ensures efficient voice compression and seamless integration, making it ideal for expanding business phone networks.

Features

• Provides voice compression channels - Used for VoIP calls
• For IP Office 5.0 or lower
  • Provides 4 initial channels with additional channels up to 64 being enabled by licenses
• For IP Office 6.0 or higher
  • Provides all 64 VCM channels with 12 IP Telephony endpoints active; additional IP telephones can be added via license activation
• Provides 4 RJ45 ports
  • Can be fitted with an optional IP500 trunk interface card that uses these ports for trunk connections (IP500 Analog Trunk 4, IP500 Universal PRI 1, IP500 Universal PRI 2)
• Maximum
  • 2 per IP500 control unit; 148 channel maximum using IP500 and or IP400 VCM cards

Compatibility

• IP Office 5.0 or lower - Provides 4 initial VCM channels with additional channels up to 32 being enabled by license
• For IP Office 6.0 or higher - Provides all 32 VCM channels and includes 12 Avaya IP Endpoint licenses; additional Avaya IP telephones can be added by additional Avaya IP Endpoint licenses

Included

• Avaya IP500 VCM 64 4-Port Base Card

Refurbished

Functionality
Cosmetics

All refurbished items are restored to full functionality, and their grades reflect only cosmetic condition. Lower-grade products may have more visible blemishes but are rigorously tested and cleaned to ensure identical performance and warranty coverage.
