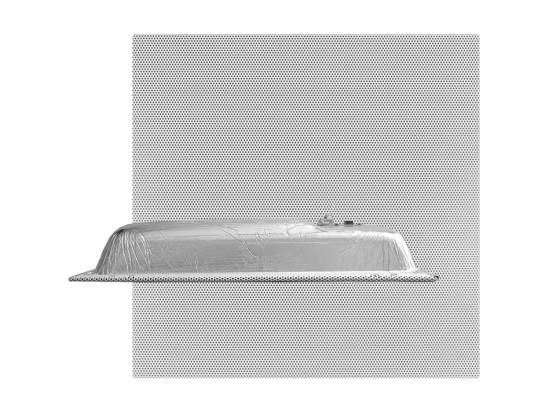

The Viking model 22TB-IP Talk-Back 2′ x 2′ ceiling speaker tile replacement enables two-way conversations and end point paging via SIP, yet also allows for standard paging and background music via multicast. The Talk-Back Ceiling Speaker easily connects with a single CAT5/6 cable from your PoE switch. Its 2’ x 2’ size, shallow depth and lightweight design make for quick and easy installation in drop/suspended ceilings. The paging ceiling speaker aesthetically pleasing white grill blends in with existing ceiling tiles and air vents.

Features

• SIP compliant (see page two for list of compatible SIP servers and IP phone systems)
• PoE powered (class 3, <13 Watts)
• Up to 28 second ID announcement (uploaded from wave file or recorded live)
• Paging prioritization
• Plays audio from multicast
• SIP endpoint or multicast group member
• Supports up to 10 multicast paging groups
• Add an optional SL-2 blue, green, red or amber strobe light (see DOD 242)
• Blue call status LED indicator
• Automatic Noise Canceling (ANC) feature for operation in noisy environments
• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode
• Selectable auto-answer feature for monitoring
• Autoprovisioning via Viking programming software
• Built-in high efficiency 6 Watt class D amplifier
• Can drive up to 5 external analog speakers for greater coverage
• Relay for activating door locks, strobe lights, external amplifiers, etc.
• SIP/Multicast: SIP page, SIP page and zoned multicast stream, zoned multicast receive
• Support for access code to prevent unwanted SIP calls
• Line-level audio output for connecting to an external amplifier
• Hangs up on: busy signal, time-out, or touch tone command
• Network remote speaker volume control

Included

• Paging Speaker

Additional Notes

• The 22TB-IP does not support multicast paging using the G722 or G711a Codec.
