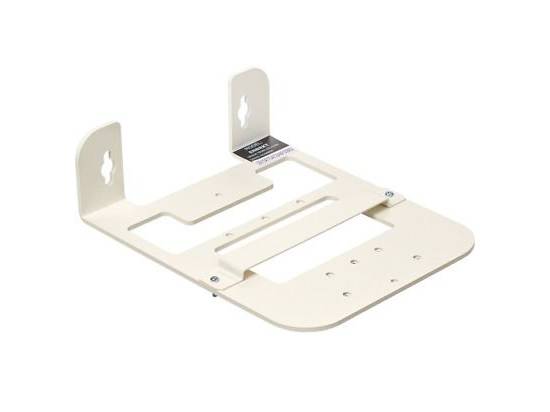

Oberon, Inc. Right Angle Wall Bracket for all APs - White

Mount APs in open ceiling areas with this convenient H-Plane™ joist or wall mounting solution. Ideal for restaurants and retail environments with open ceilings. Quickly install AP in preferred horizontal orientation. Mounting features for leading vendors APs. Includes two beam clamps and wall anchors. Certain SKUs include a paintable black plastic vanity cover to help conceal the AP in dark ceilings. The AP can be locked in place using the AP manufacturer’s locking features.

Features

• Conveniently install and conceal AP in open ceiling environment
• Enables APs to be mounted in preferred horizontal orientation
• Painting the AP may void manufacturer’s warranty, so Oberon includes a paintable, black plastic vanity cover with some SKUs (please see CONFIGURATIONS)
• T-bar bracket accommodates APs from most vendors; includes features for mounting Cisco AIR-AP-BRACKET-2 directly to the right-angle bracket
• Beam mount clamps allow it to be mounted directly to a beam or truss
• Design: Right-angle mounting bracket for securing APs on walls, and on ceiling joists and beams in open ceilings. Designed to mount the AP in the preferred horizontal orientation. Accommodates leading vendors’ APs
• Includes adjustable T-bar bracket for attaching most vendors’ APs, black beam clamps, wall mounting hardware
• Available in White, Black, and with Oberon ABS plastic vanity cover as identified in Oberon Model 1008 Configuration guide below
• Construction: 10 ga. powder-coated steel

Included

• (1) Right-Angle Mount
• (2) Beam Clamps
• (2) Drywall Anchors
• (1) T-Bar Bracket
• (1) Cable Tie
• (2) 1/4-20 x 3/8 in. Screws
• (4) #6-32 x 3/8 in. Screws
• (2) M4 x 8 mm Screws
