Yealink W80 DECT IP Multi-Cell Handset Deployment Tool Kit

Yealink offers the DECT IP Multi-Cell Deployment ToolKit to help you plan and install your DECT IP multi-cell system. You can use the measuring devices in the kit to determine the radio coverage at your position, establish all base stations required for a given installation and their optimal positions, and find sources of interferences in the DECT wireless network.

Using the Tool Kit

1. Select the first measuring point, mount the base station to a proper position on the stand, and charge it using the mobile power. Note: The stand height can be adjusted from 3.28 feet (1.00 meter) to 9.19 feet (2.80 meters).
2. Enter the code *1234203# in the handset’s idle screen to activate the metering mode.
3. Set up communications between two handsets in the metering mode, and measure the radio coverage. You can connect headsets to the measuring handsets so that you can assess the quality of the sound transmitted from the measuring base station. It also means that your hands are free to enter the positions determined in the plan and you can read the LCD screen during the measurement.
4. Check the current status values of the connection to determine the second position of the base station. The recommended RSSI value is between -27 dBm and -85 dBm (subject to actual call), and the Frame quality is 100%.
5. Move the base station to the second position, and adjust it to a proper position of the stand.
6. Repeat the above steps to determine more positions of the base station.

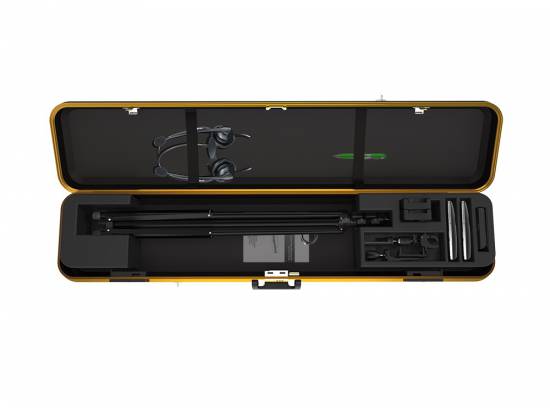

Included

• DTK (Measuring Base Station)
• W56H Handset (2)
• Battery Cover (2)
• Rechargeable Battery (4)
• USB Charging Cradle (2)
• Power Adapter (2)
• Stand
• Base Station Clip
• Mobile Power Clip
• USB-DC Cable
• UH33 Headset (2)
• Notebook and Pen
• Quick Start Guide

Note

• The Yealink W80 Deployment Tool Kit is considered a special order and is not eligible for refund or exchange. Units are covered by a 1-year warranty
