Grandstream GWN7806PH Pro 48-Port Managed Gigabit PoE++ Switch
-
20,000+★★★★★5 Star Reviews
Free Shipping on Orders of $500+ *
Satisfaction Guaranteed

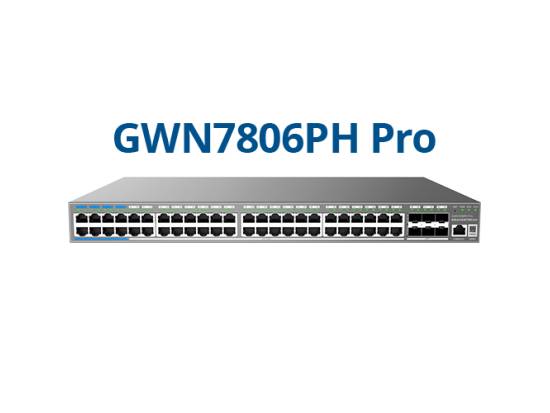

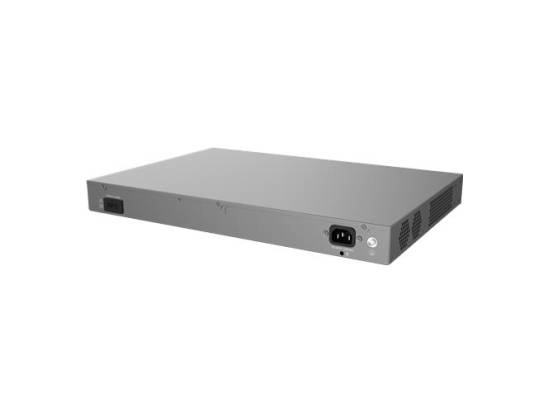

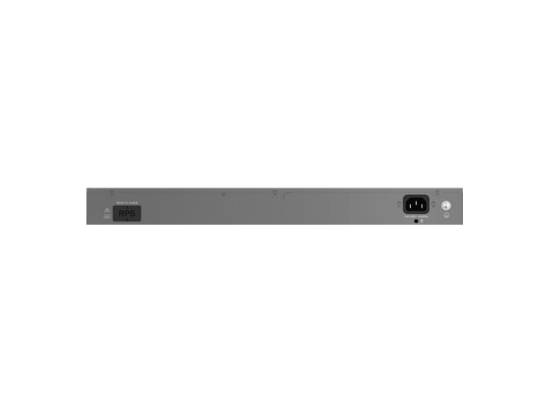

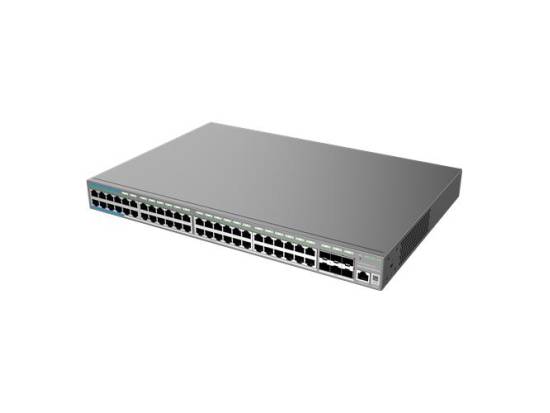

Grandstream GWN7806PH Pro 48-Port Managed Gigabit PoE++ Switch
The Grandstream GWN7806PH Pro is a robust managed Layer 2++ switch designed to power and connect modern business networks. With 48 Gigabit PoE++ ports and 6 high-speed SFP+ uplinks, this enterprise-grade switch delivers the performance and flexibility needed for growing organizations.
Key Features and Benefits
- High-Density PoE++ Deployment: 48 RJ45 Gigabit ports with PoE++ (802.3af/at/bt) support, delivering up to 60W per port with approximately 720W total power budget
- 10G Uplink Connectivity: 6 SFP+ ports for high-speed 10 Gigabit fiber connections to core network infrastructure
- Advanced Layer 2++ Management: Comprehensive features including VLANs, QoS, ACLs, IGMP/MLD snooping, and DHCP relay for intelligent traffic management
- Flexible Module Support: Accommodates up to 6 single-mode 10G modules, 6 multi-mode 10G modules, or 3 RJ45 10G modules
- Stacking Capability: Support for network stacking to simplify management and expand capacity
- Versatile Installation: Desktop or rack-mount options with included mounting hardware
- Enhanced Network Tables: Larger MAC and VLAN tables for scalable enterprise deployments
Ideal for Power-Hungry Network Deployments
The GWN7806PH Pro excels in environments requiring both high port density and substantial PoE power delivery. It's particularly well-suited for powering IP phones, wireless access points, PTZ cameras, and other PoE-enabled devices across multiple floors or departments. The generous 720W PoE budget ensures you can fully utilize the switch's capabilities without power constraints, while the 10G SFP+ uplinks provide the bandwidth needed to aggregate traffic from all 48 access ports without bottlenecks. The Layer 2++ feature set provides the advanced functionality required for complex network segmentation, quality of service prioritization, and security policies, making it suitable for healthcare facilities, educational institutions, corporate offices, and hospitality venues.
Technical Specifications
- Manufacturer: Grandstream
- Model: GWN7806PH Pro
- Total Ports: 54 (48x RJ45 + 6x SFP+)
- Port Speeds: 1G on RJ45 ports, 10G on SFP+ ports
- PoE Standard: 802.3af/at/bt (PoE++)
- PoE Power: Up to 60W per port, ~720W total budget
- Management: Fully managed Layer 2++ switch
- Mounting: Desktop or rack-mount (hardware included)
- Dimensions: 17.3" x 11.8" x 1.7" (W x D x H)
Included
- 1x GWN7806PH Pro Switch
- 1x 25cm Ground Cable
- 4x Rubber Footpads
- 1x Power Cord Anti-Trip
- 1x 1.2m (10A) AC Cable
- 1x Simplified Quick Installation Guide
- 1x Regulatory Paper
- 2x
New Product
These products are brand new and have never been used. They arrive in the original manufacturer packaging in pristine, factory-fresh condition.
GWN7806PH Pro 48-Port Managed Technical Specs
| Manufacturer | Grandstream |
|---|---|
| Model | GWN7806PH Pro |
| Total # of Ports | 54 |
| Port Type(s) and Quantity | 48x RJ45, 6x SFP+ |
| Port Speeds | 1G (RJ45); 10G (SFP+) |
| PoE (Yes/No) | Yes PoE++ (802.3af/at/bt) |
| PoE Output | Up to 60W per port (~720W) |
| Max Amount of Supported Modules | SM-10G: 6 ; MM-10G: 6 ; RJ45-10G: 3 |
| Managed (Yes/No) | Yes |
| Layers | Layer 2++ |
| Layer Features | Core Layer 2 switching, larger MAC/VLAN tables, QoS, ACLs, IGMP/MLD snooping, DHCP relay, limited unicast, with higher switching capacity and SFP+ uplinks, plus PoE High variant, adds higher PoE budget while retaining Layer 2++ features, stacking support, |
| Mounting Type(s) | Desktop, or Rack-Mount (rack-mounting kits included) |
| Dimensions (WxDxH) | 17.3 x 11.8 x 1.7 |
| Included | 1x Switch 1x 25cm Ground Cable 4x Rubber Footpads 1x Power Cord Anti-Trip 8x Screws (KM3*6) 1x 1.2m(10A) AC Cable 1x Simplified Quick Installation Guide 1x Regulatory Paper 2x Rack-Mounting Kits |
