Fanvil i564W Indoor Station

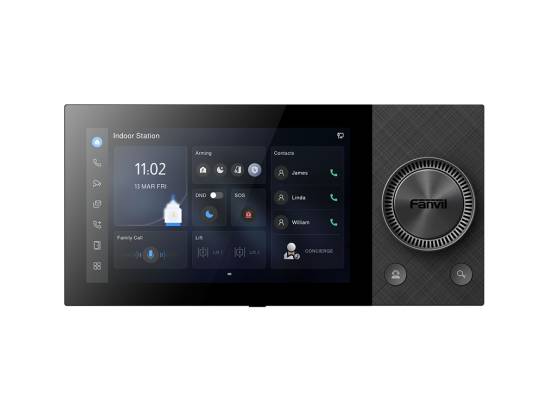

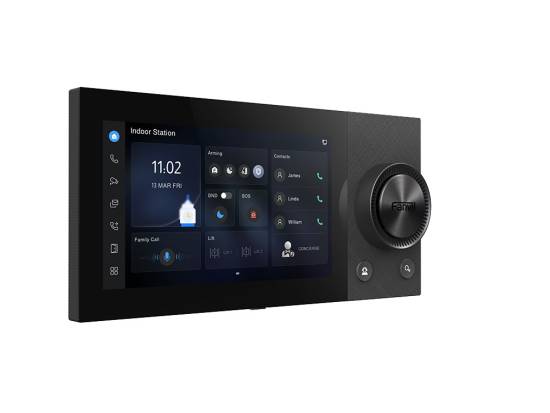

The Fanvil i564W is a feature-rich indoor station designed for residential and commercial intercom systems, combining a large touchscreen display, robust access control capabilities, and clear two-way audio in a single wall-mounted unit. It's a practical solution for businesses and property managers looking to manage entry, communication, and alarm monitoring from one centralized device.
Key Features & Benefits
- 7-inch IPS color capacitive touchscreen (1024 x 600 resolution) for intuitive navigation and control
- Remote door unlocking with BLE key support for hands-free access and call handling
- 2.4 GHz Wi-Fi 6 (802.11 b/g/n/ax) plus dual 10/100 Mbps Ethernet ports with PoE support for flexible network connectivity
- 5 W multimedia speaker with smart noise cancellation and 5-meter voice pickup for clear, full-duplex hands-free communication
- 8 alarm inputs, 1 short-circuit output, and a doorbell input to integrate with existing security systems
- RS-485 interface and TF card slot (up to 128 GB) for expanded functionality and local storage
- One-touch family call, messaging, and user-defined Do Not Disturb (DND) scheduling for everyday convenience
Whether installed at the entrance of an office building, apartment complex, or home, the i564W serves as a reliable communication hub between visitors and occupants. Its combination of touchscreen controls, BLE-enabled access, and alarm input/output support makes it well-suited for businesses that need a dependable entry management solution, while the tactile volume knob and shortcut buttons add ease of use for everyday household needs. With support for both wired and Wi-Fi connectivity, the unit can be integrated into a variety of network environments, and the wide operating temperature range (-10°C to +50°C) makes it suitable for most indoor installation locations.
Technical Specifications
- Network: 2x RJ45 10/100 Mbps Ethernet ports, PoE 802.3af or 12 VDC/2A power supply
- Wi-Fi: 2.4 GHz Wi-Fi 6 (802.11 b/g/n/ax)
- Bluetooth: BLE pairing for remote control, door unlocking, and call handling
- Audio Codecs: Narrowband (G.711a/u, G.723.1, G.726, G.729AB, iLBC); Wideband (G.722, Opus)
- Access Control: Remote door unlocking, BLE key, short-circuit output, RS-485 interface
- Buttons: 1 volume knob, 2 shortcut buttons
- Casing: ABS material
- Operating Temperature: -10°C to +50°C (-14°F to +122°F)
- Storage Temperature: -40°C to +80°C (-40°F to +176°F)
- Operating Humidity: 10% to 90% RH
- Dimensions: 9.67" x 0.43" x 4.61"
- Optional Accessories: BK01, BK05, EC20
Included
- 1x Fanvil i564W Indoor Station
- 1x Wall Mounting Bracket
- 1x Mounting Template
- 1x Quick Installation Guide
- 1x Installation Screw Pack
Why buy from PC Liquidations
Every unit we offer goes through a rigorous 25+ point certification process to confirm it's ready for reliable, everyday use before it reaches your door. We back this up with a team dedicated to getting your order to you quickly, so you can get your intercom system up and running with minimal downtime.
With a wide selection of business communication and security equipment, competitive pricing, and support from a knowledgeable team, outfitting your space with the Fanvil i564W is a straightforward and cost-effective choice for businesses and home users alike.
New Product
These products are brand new and have never been used. They arrive in the original manufacturer packaging in pristine, factory-fresh condition.
i564W SIP Indoor Station Technical Specs
| Manufacturer | Fanvil |
|---|---|
| Model | i564W |
| Camera | - |
| Access Control | Remote door unlocking, BLE key for door unlocking and call handling, 1 short-circuit output, and RS-485 interface |
| Network Interface & PoE | 2 RJ45 10/100 Mbps self-adaptive Ethernet ports; supports PoE 802.3af (or 12 VDC, 2 A power supply) |
| Wi-Fi | 2.4 GHz Wi-Fi 6 (IEEE 802.11 b/g/n/ax) |
| Bluetooth | Paired with BLE key for remote control, door unlocking, and call handling |
| Button | 1 volume knob and 2 shortcut buttons |
| Audio Features | 5 W multimedia speaker, HD speaker with smart noise cancellation, 5-meter voice pickup, full-duplex hands-free communication with Acoustic Echo Cancellation (AEC), narrowband codecs (G.711a/u, G.723.1, G.726, G.729AB, iLBC), wideband codecs (G.722, Opus), |
| Alarm Input/Output | 8 alarm inputs, 1 short-circuit output, 1 doorbell input |
| Expansion Interface | 1 RS-485 port, 1 TF card slot (supports up to 128 GB) |
| Durability | ABS casing material; Operating temperature -10 °C to +50 °C (-14 °F to +122 °F); Storage temperature -40 °C to +80 °C (-40 °F to +176 °F); Operating humidity 10% to 90% RH (IP/IK ingress/impact ratings are not specified) |
| Special Features | 7-inch IPS color capacitive touchscreen (1024 x 600 resolution), tactile volume knob design, one-touch family call, message sending/receiving, and user-defined Do Not Disturb (DND) schedules |
| Dimensions | 9.67" x 0.43" x 4.61" |
| Optional Accessories | BK01 BK05 EC20 |
| Included | 1x Fanvil i564W Indoor Station 1x Wall Mounting Bracket 1x Mounting Template 1x Quick Installation Guide 1x Installation Screw Pack |
