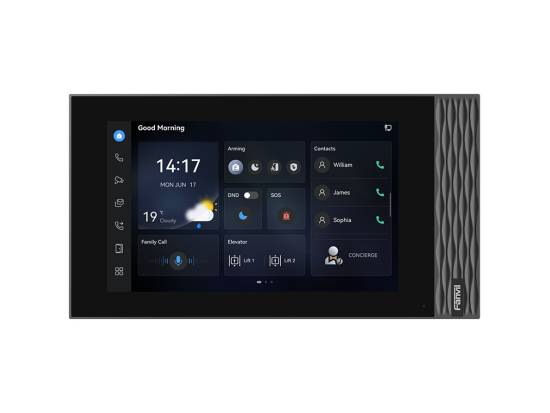

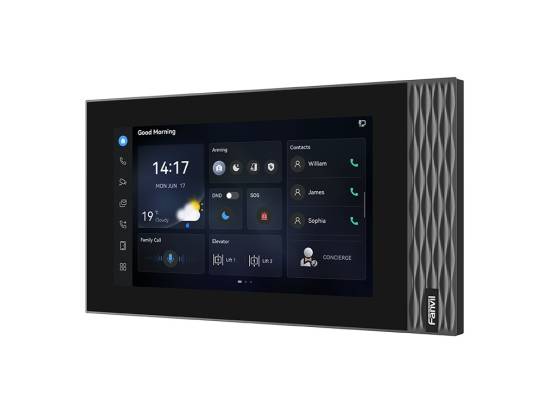

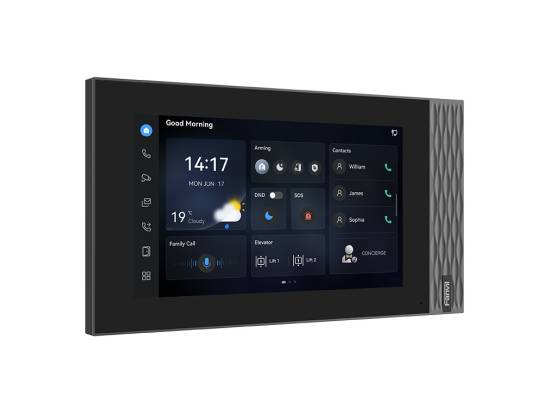

Fanvil i554W SIP Indoor Station

The Fanvil i554W SIP Indoor Station is a smart entryway communication hub designed to pair seamlessly with Fanvil door phone systems. With a bright 7-inch touchscreen, built-in Wi-Fi 6, and flexible alarm connectivity, it's built to keep homes, offices, and multi-tenant properties connected and secure.

Key Features & Benefits

• 7-Inch Color Touchscreen: A 1024 x 600 capacitive display provides a clear, intuitive interface with no physical buttons required.
• Remote Door Unlocking: Grant access to visitors from anywhere using the integrated access control function.
• Wi-Fi 6 Connectivity: Supports 2.4 GHz 802.11 b/g/n/ax for a stable wireless connection, alongside a standard RJ45 Ethernet port with PoE support.
• Crystal-Clear Audio: A 2W multimedia speaker and HD audio with Acoustic Echo Cancellation (AEC) and smart noise cancellation deliver dependable full-duplex, hands-free communication.
• Broad Codec Support: Compatible with multiple narrowband and wideband codecs, including G.711, G.722, G.729AB, iLBC, and Opus, for flexible SIP 2.0 deployment.
• Robust Alarm Integration: 8 alarm inputs, a short-circuit output, and a dedicated doorbell input make it well-suited for security-conscious environments.
• Expandable Connectivity: Includes an RS-485 port for integration with additional peripherals and building systems.
• Durable Build: ABS casing rated for operation from -10°C to +50°C, making it suitable for a range of indoor installation environments.
• Convenience Features: One-touch family calling, customizable ringtones, scheduled Do Not Disturb (DND), and message send/receive capability.

Whether installed at a front office reception, a residential building lobby, or a multi-unit property entrance, the i554W streamlines visitor management by combining voice communication, video-free access control, and alarm monitoring into a single compact unit. Its SIP 2.0 compatibility allows it to integrate into existing VoIP infrastructure, while Wi-Fi 6 support and a standard Ethernet/PoE connection give installers flexibility when planning network layouts. The alarm inputs and RS-485 expansion port also make it a practical choice for businesses looking to tie door communication into broader security or building management systems.

Technical Specifications

• Manufacturer: Fanvil
• Model: i554W
• Network Interface & PoE: 1 RJ45 10/100 Mbps self-adaptive Ethernet port; PoE 802.3af (or 12 VDC, 1 A power supply)
• Wi-Fi: 2.4 GHz Wi-Fi 6 (IEEE 802.11 b/g/n/ax)
• Display: 7-inch color capacitive touchscreen (1024 x 600 resolution)
• Audio: 2W multimedia speaker, HD speaker, AEC, narrowband and wideband codec support
• Alarm Input/Output: 8 alarm inputs, 1 short-circuit output, 1 doorbell input
• Expansion Interface: 1 RS-485 port
• Casing Material: ABS
• Operating Temperature: -10°C to +50°C (-14°F to +122°F)
• Storage Temperature: -40°C to +80°C (-40°F to +176°F)
• Operating Humidity: 10% to 90% RH
• Dimensions: 8.50" x 0.94" x 4.65"
• Optional Accessories: DS101, WB101 & WB102, EX31, RC01, RC02

Included

• 1x Fanvil i554W Indoor Station
• 1x Quick Installation Guide
• 1x 8-Pin Cable
• 1x 9-Pin Cable
• 4x Rubber Plugs
• Mounting Screws
