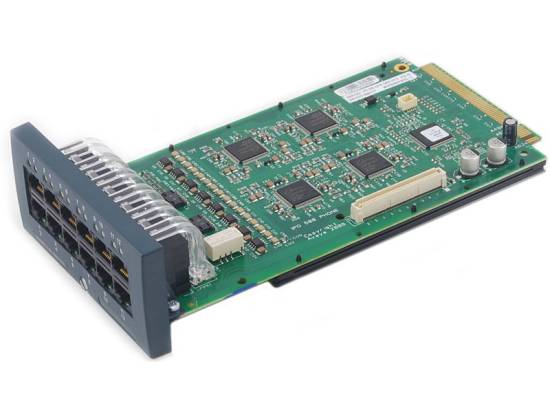

Avaya IP500 Analog Extension Phone 8 Module (700417231) is used to add analog phone extension ports to an IP500 and IP500v2 control unit. The Extension Phone 8 Module provides 8 analog extension ports.

Features

• (12) RJ45 ports - The first 8 ports are analog extension ports for the connection of analog telephones.  It can be fitted with an IP500 trunk interface card that uses an additional 4 ports for connections.
• Power Failure Transfer - When fitted with an IP500 Analog Trunk daughter card, the combination supports 1 power failure extension to trunk (loop-start only) connection
• Maximum - 4 per IP500 or IP500 V2 control unit running IP Office; 3 per IP500 V2 control unit running IP Office Partner Version

Compatibility

• IP500 Control Unit running IP Office R5.0 or higher
• IP500 V2 Control Unit running IP Office R6.0 or higher or IP Office Partner Version
• Compatible with analog telephones
• Optional IP500 trunk interface cards - IP500 Analog Trunk 4, IP500 Universal PRI 1, IP500 Universal PRI 2

Included

• Avaya IP500 Analog Phone 8

Refurbished

Functionality
Cosmetics

All refurbished items are restored to full functionality, and their grades reflect only cosmetic condition. Lower-grade products may have more visible blemishes but are rigorously tested and cleaned to ensure identical performance and warranty coverage.
