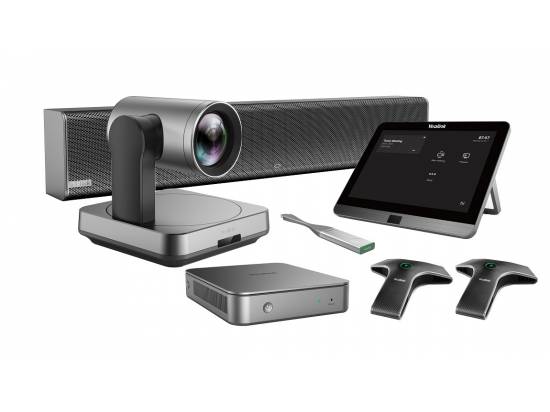

The Yealink MVC840 HD Video Conference Room System delivers a native Microsoft Teams Rooms (MTR) and Skype for Business (SRS) meeting experience designed for medium and large meeting spaces with 9 to 18 participants. Yealink MVC840 Room System is a complete solution with up to 4K/60FPS PTZ camera, 8-inch Color LCD control console, Mini i5 PC w/Windows 10, Up to 6 wired mics, Soundbar , video peripherals, remote control and cables.
Improvements over MVC800 II
- Resolution: 4K vs 1080p
- Megapixels: 8 vs 2
- FOV: 80 degrees vs 78.5 degrees
- Flexible camera mounting: Table top, top-of-monitor, wall and ceiling mountable
- Camera Privacy: UVC84 lens points down when not in use - no longer need lens cap
- PoE Switch included for connection to audio devices
- Native Microsoft Teams Rooms (MTR) and Skype for Business (SRS) pre-installed for fast deployment and easy user adoption
- UVC84 USB PTZ Camera with 12x optical zoom (4K/60FPS) + 3x digital zoom with Auto-framing capability
- Supports up to (2) monitors/displays including projectors via HDMI output
- Yealink MTouch II Console is an 8 inch touchscreen with native Microsoft interface allowing you to easily launch and control meetings. Built-in WiFi for wireless content sharing (WPP20 req). HDMI/USB-C input allows you to quickly share content from your PC or Mac (cable included)
- MTouch II connects to the Mini PC via Ethernet Cable making it easier to install in any size meeting room. CAT5e length up to 131 ft
- Wireless share content with WPP20 Wi-Fi Content Sharing Device.
- VCM34 Array Microphone has 20ft voice pickup range, featuring Yealink Noise Proof technology, so everyone's voice in the room is clearly heard. Up to 6 VCM34 supported
- VCM38 Ceiling Array Microphone can cover up to 130 sq ft with 8 built-in microphones also featuring Yealink Noise Proof technology. Up to 8 VCM38 supported (optional - sold separately) (Note: VCM38 microphones can not be mixed with other Yealink microphones on the MVC840 system.)
- Includes a powerful 8th Gen i5, 8 GB mini-PC w/Windows 10 IoT Enterprise OS with Teams and SFB App pre-installed
- The included Mini-PC Bracket offers protection to the cables plus gives you the ability to mount the unit on the wall or stick with Velcro behind a TV
- MSpeaker II is a powerful 40 watt soundbar giving your meeting room life-like sound
- UVC84 does not have USB Type A port, so it can not support CPW90 wireless microphones. New wireless microphone support coming mid 2021
- Interop capability to join Zoom Rooms and Webex meetings. Calendar integration and one-touch join capability
- Optional: Bring-your-own-device capability with Yealink's BYOD Extender
- Optional: UVC90 Camera Hub allows multiple cameras to connect to the system
- UVC84 USB PTZ 4K Camera with mounting hardware
- Mini-PC w/pre-installed Windows 10 and Microsoft App
- MTouch II Console w/25 ft Ethernet cable
- USB-C Cable w/HDMI adapter (for content sharing via MTouch II)
- 2x VCM34 Array Microphones
- 1x WPP20 USB Wireless Content Sharing Device
- MSpeaker II Soundbar
- PoE switch
- VCR20 Remote Control
- Cables and other necessary peripherals
New items ship in their original manufacturer's packaging. These items are in excellent condition with no blemishes on their housings.
|Camera Resolution ||4K at 30FPS |
1080P at 60FPS
|Field of View||80 degrees|
Pan: 100 degrees
Tilt: 40 degrees (90 degrees when off)
|Zoom||12x optical zoom +|
3x digital zoom
|Microphone ||2x VCM34 wired mics|
|Networking ||Mini PC's VCH port connects to MTouchII|
Mini PC's internet port for physical network connection
UVC84's VCH port connects to included PoE networking switch to connect VCM34 and MSpeaker II
UVC84 VCH port can also connect directly to VCM34 mics
|PoE||MTouch II and VCM34 microphones receive power through Ethernet Cable|
(The Mini-PC, and Soundbar require the use of a DC power adapter)
|USB Port(s)||Mini PC - 4x USB-A 3.0|
MTouch II - 1x USB-C
UVC84 - 1x USB-B 2.0
|HDMI Port(s)||Mini-PC - 2x HDMI output w/CEC|
|Additional Information||UVC84 has 3.5mm output to MspeakerII and other powered speakers.|
