Agilent Multiport Coaxial Switch DC to 26.5 GHz, SP4T - Grade A

SKU 119837 8767K-R Refurbished (Grading Guide)

15,000+

★★★★★

5 Star Reviews
Free Shipping on Orders of $500+ *
Satisfaction Guaranteed

Have one to sell?

Sell to PCLiquidations

Overview Policies

Item Information

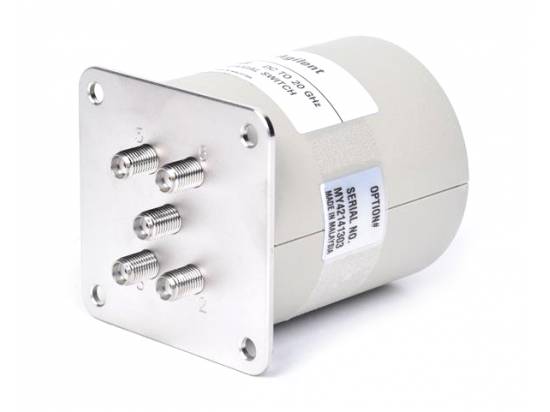

The Keysight 8767K single-pole, four-throw microwave switch utilizes the same proven technology as Keysight's 849X family of step attenuators. It offers rugged reliability, excellent repeatability (typically 0.01 dB to 18 GHz and 0.05 dB to 26.5 GHz), long life (greater than five million switching cycles) and compactness. Switching time is less than 20 ms, including contact settling time. The switch includes self-interrupting contacts which minimize power consumption and simplify the driver circuit design. A wide range of solenoid voltage choices (24 volts standard or, optionally, 5 or 15 volts) is available to match the requirements of your product or system.

Features

5 million cycles
0.03 dB repeatability
Unterminated
Current interrupts and position indication capability
Exceptional isolation
Easy GPIB implementation for ATE applications

Included

Coaxial Switch

These items have been refurbished. Refurbished items have been cleaned, tested, and confirmed to be fully functional. Grade A - Refurbished items show wear from consistent use and can have some scratches and may have some yellowing or discoloration.
