Item Information
The Grandia GD09 is a culmination of SilverStone’s decade-long experience in HTPC case design and manufacturing into a product that every PC enthusiast can enjoy. The incredible efficiency in which it utilizes all available space results in a case that is close in size externally to Micro-ATX based GD04 and GD05, yet capable of fitting most important full size standard components including wider ATX motherboards (SSI-CEB) such as ROG or other gaming-centric models. All drive cages have been designed similarly to those from the popular ML03 case to provide maximum flexibility in drive configuration without the need for additional adapters. For cooling, all positive pressure and smooth airflow designs were retained from previous Grandia models while improvements were made to filter access for even easier maintenance. With the GD09, there has never been a more attractively sized HTPC case that is as capable and user-friendly. So whether one is looking to build an affordable or a powerful PC, this case can definitely satisfy both ends of the requirement.
Features
- Positive air pressure design for excellent cooling/quietness and dust-prevention
- Support expansion cards up to 12.2 inches
- Support ATX motherboards
- Quick access filters included
- Incredible 358mm depth to fit comfortably inside home theater cabinet
- Drive cages with multi-purpose mounts eliminate need for adapters
Included

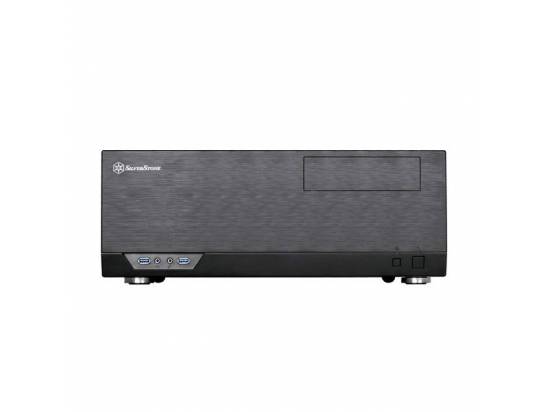

- SilverStone Grandia Series GD09B HTPC Case
Not Included
New Product
New items ship in their original manufacturer's packaging. These items are in excellent condition with no blemishes on their housings.
UPC: 00844761011284
Grandia Series GD09B ATX Technical Specs
| Form Factor | HTPC Case |
|---|
| Case Materials | Plastic front panel with faux aluminum finish, 0.8mm steel body |
|---|
| Motherboard Compatibility | SSI-CEB, ATX, Micro-ATX |
|---|
| USB 2.0 | 0 |
|---|
| USB 3.0 | 2 |
|---|
| USB 3.1 | 0 |
|---|
| USB 3.2 | 0 |
|---|
| USB-C | 0 |
|---|
| Side Panel Window | No |
|---|
| LED | No |
|---|
| Removable Dust Filter | No |
|---|
| Internal 3.5" Drive Bays | 2 |
|---|
| Internal 2.5" Drive Bays | 1 |
|---|
| Expansion Slots | 8 |
|---|
| Front Fan Support | 0 |
|---|
| Rear Fan Support | 2x 80mm Fan Vents (Fans not included) |
|---|
| Top Fan Support | Expansion card vent |
|---|
| Bottom Fan Support | 0 |
|---|
| Side Fan Support | Right: 1x 120mm intake Fan (900rpm, 18dBA), 1x 120mm Fan Vent (Fan not included)
Left: 1x 120mm Fan Vent (Fan not included), Compatible with 80mm Fan |
|---|
| Mid Fan Support | 0 |
|---|
| Front Radiator Support | 0 |
|---|
| Top Radiator Support | 0 |
|---|
| Rear Radiator Support | 0 |
|---|
| Max PSU Length | Support Standard PS2(ATX) up to 220mm, 180mm Recommended |
|---|
| Max GPU Length Allowance | - |
|---|
| Max CPU Cooler Height Allowance | 138 mm |
|---|
